Advanced haemodynamic monitoring in the ICU

[1]

The framework: matching the monitor to the question

Haemodynamic monitoring is not a hierarchy of "better" devices — it is a set of tools that each answer a different question. The art of ICU monitoring is to define the question first, then choose the least invasive monitor that answers it.[1][8]

Principle: escalate from non-invasive to invasive only when the cheaper, safer monitor cannot answer the question, and when the answer will change management ("do not monitor what you cannot interpret"). [1]

Monitoring levels

[1] [2] [8]

Basic vs advanced haemodynamic assessment — when to escalate

Most ICU patients need only basic monitoring. The decision to escalate is triggered by a clinical question that basic monitoring cannot answer, not by the availability of a device.[1][8]

[1] [8] [6] [7] [9] [12]

The arterial line — insertion and waveform analysis

The arterial line is the workhorse of ICU monitoring: continuous beat-to-beat blood pressure, arterial blood gas sampling, and — through its waveform — derived information on stroke volume, the circulation, and fluid responsiveness. Correct interpretation requires understanding the physical system that generates the trace.[1][2]

Insertion technique and site selection

Technique: aseptic (full barrier for femoral), ultrasound-guided where available. Modified Seldinger (catheter-over-guidewire) or catheter-over-needle for radial. Use short, stiff tubing; flush with heparinised or saline pressurised system at 3 mL/h plus a fast-flush valve. Zero the transducer to atmospheric pressure and level to the phlebostatic axis (4th intercostal space, mid-axillary line — the right atrium) for every measurement; re-level whenever the patient moves. [1]

The arterial waveform — what each part means

The normal arterial trace has a rapid systolic upstroke (the anacrotic limb, ventricular ejection), a systolic peak, the dicrotic notch (incisura — closure of the aortic valve), and the diastolic runoff down to end-diastolic pressure. Three pieces of clinical information live in the morphology: [1]

1. Pulse pressure (systolic − diastolic): wide pulse pressure → high stroke volume / low SVR (aortic regurgitation, sepsis, PDA, anaemia); narrow → low stroke volume / high SVR (cardiogenic shock, severe vasoconstriction, aortic stenosis, tachycardia).
2. Pulse pressure variation (PPV) / systolic pressure variation (SPV) with respiration — a marker of fluid responsiveness in ventilated patients (see below).
3. Upstroke slope (dP/dt) — a rough, load-dependent index of contractility; a slow/slurred upstroke suggests poor LV function. [1]

Dynamic response — natural frequency and damping (high-yield exam topic)

The pressure trace is transmitted through a fluid-filled catheter + tubing + transducer — a resonant system that must be correctly damped to reproduce the true pressure. Two failure modes:[1]

The fast-flush ("square-wave") test — the bedside check: pull the fast-flush valve briefly and release.

• Optimal: 1–2 sharp oscillations before returning to baseline.
• Underdamped: many oscillations (3+) that ring before settling (high-amplitude, slowly decaying).
• Overdamped: no oscillations, slow slurred return to baseline. [1]

The cardinal rule: in both under- and over-damping the mean arterial pressure (MAP) remains accurate. So if the trace looks wrong, trust the MAP, distrust the systolic/diastolic, and fix the system (flush out bubbles, check for kinks; if underdamped, add a damping device or shorter tubing). [1]

Other pitfalls: transducer drift (re-zero hourly and after position change); wrong level (every 5 cm error = ~3.7 mmHg); radial–femoral gradient in shock (periphery vasoconstricts first — femoral reads higher); catheter whip; and cuff–line discrepancy (lines are generally more accurate; NIBP may be preferred in severe peripheral vasoconstriction if the line is over/under-damped). [1]

[1]

Central venous pressure (CVP) — what it is, what it tells you, and its limits

CVP is the pressure of blood in the great thoracic veins at the entrance to the right atrium — a surrogate of right atrial pressure and, indirectly, right ventricular preload. It is measured via the distal port of a central venous catheter (tip in the SVC–RA junction), zeroed at the phlebostatic axis, and read at end-expiration (to minimise intrathoracic pressure artefact) and end-diastole (just before the R wave on the ECG). Normal range is conventionally 2–8 mmHg.[1][7]

Determinants of CVP

CVP is set by four things, which is why a single number is so hard to interpret:

1. Venous return / circulating volume (the variable people assume it measures).
2. Right heart compliance and function (RV infarct, pulmonary hypertension, tricuspid disease all raise CVP independent of volume).
3. Intrathoracic / intrapericardial pressure — PEEP and tension pneumothorax raise the measured CVP without changing RV filling. Rule of thumb: at high PEEP the measured CVP overestimates the transmural filling pressure — subtract roughly half the applied PEEP.
4. Venous tone (sympathetic activity, vasopressors). [1]

The CVP waveform

The critical limitation: CVP does NOT predict fluid responsiveness

This is the most important haemodynamic concept in critical care. Marik & Cavallazzi's 2013 meta-analysis of 43 studies showed that the area under the ROC curve for CVP predicting fluid responsiveness was ~0.56 — no better than flipping a coin, and the relationship did not improve with a change in CVP after a fluid bolus (ΔCVP was equally useless).[7] The reason is physiological: the Frank–Starling curve is non-linear, and a given CVP can sit anywhere on it depending on cardiac and vascular compliance. The Surviving Sepsis Campaign 2021 therefore recommends against using CVP alone to guide fluid therapy, and for dynamic tests.[9]

[1]

What CVP IS still useful for

Despite its failure as a volume marker, the CVP line remains valuable for: vascular access (vasopressors, irritant drugs, parenteral nutrition); trend monitoring within an individual patient (a rising CVP trend); right-heart diagnosis from the waveform (cannon a waves, large v waves, equalisation in tamponade); ScvO2 sampling; and as the venous injectate port for PiCCO/transpulmonary thermodilution. It is the pressure the right heart sees — useful, just not for fluid decisions.[1]

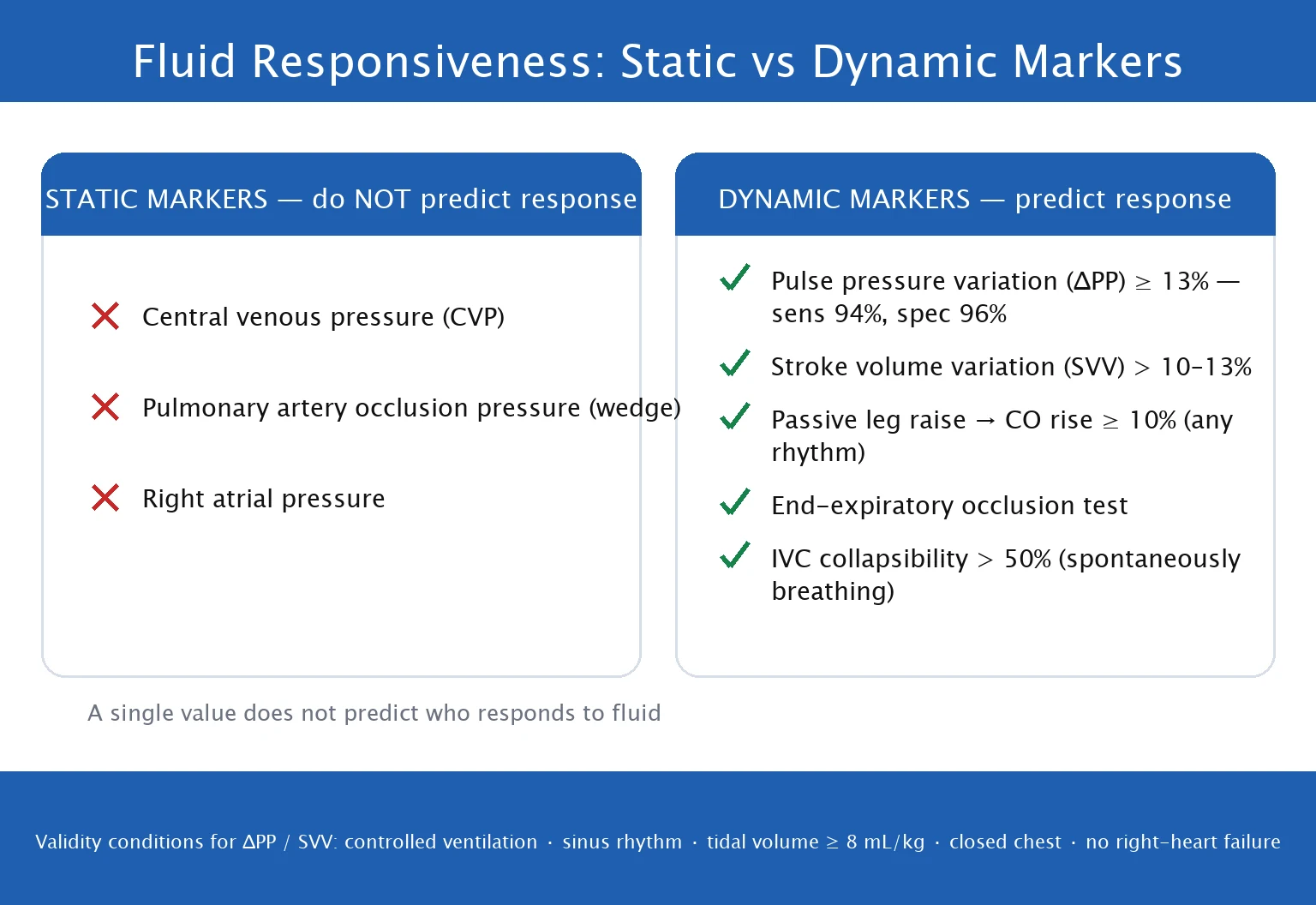

Fluid responsiveness assessment

Fluid responsiveness is defined as a ≥10–15% increase in stroke volume or cardiac output after a volume challenge. The point is to predict it before giving fluid (to avoid fluid overload in non-responders). The evidence base is unanimous: use dynamic tests, not static markers (CVP).[1][7][9]

[1] [9] [1]

The pulmonary artery catheter (PAC / Swan-Ganz) — indications, technique, complications

The PAC is a balloon-tipped, flow-directed catheter inserted via a central vein and floated through the right heart into the pulmonary artery. It is the reference ("gold") standard for measuring cardiac output (thermodilution), pulmonary artery pressures, and the pulmonary artery wedge pressure (PAWP, an estimate of left atrial pressure), and for sampling mixed venous oxygen (SvO2). It remains a powerful diagnostic tool — but its routine use has collapsed after a series of negative trials.[2][10]

What the PAC measures

• Right atrial pressure (proximal port) = the CVP.
• Right ventricular pressure during transit (systolic 15–30, end-diastolic ~0–8 mmHg).
• Pulmonary artery pressure (distal port): systolic 15–30, diastolic 4–12, mean 9–18 mmHg.
• Pulmonary artery wedge pressure (PAWP/PCWP): with the balloon inflated (~1.5 mL air), the catheter wedges in a branch PA, creating a static column to the left atrium. PAWP reflects LA pressure and, in the absence of mitral disease and with normal pulmonary vascular resistance, LV end-diastolic pressure (LVEDP) — a pressure-based preload surrogate. Normal 6–12 mmHg.
• Cardiac output by thermodilution: a cold bolus (10 mL saline) injected in the RA is detected by the thermistor in the PA; the Stewart-Hamilton equation converts the temperature–time curve to CO. Average 3 measurements (they vary with respiration).
• Mixed venous oxygen saturation (SvO2) — sampled from the PA (true mixed venous). A continuous oximetric PAC gives real-time SvO2. [1]

Insertion and the pressure-tracing "roadmap"

The catheter is floated while watching the pressure trace (and ECG) change as it passes each chamber — this is a classic viva: [1]

The diastolic "step-up" from RV to PA is the key sign you have crossed the pulmonary valve; the wedge is confirmed by the waveform change and by the fall to a venous trace. [1]

Indications (current, justified use)

After the negative trials, the PAC is reserved for the complex haemodynamic problem where the question cannot be answered by echo or less-invasive devices:[8][10]

• Pulmonary hypertension and RV failure — diagnosis/characterisation (pre-capillary vs post-capillary from the wedge; calculate PVR), and acute decompensation (pulmonary hypertensive crisis). Includes connective tissue disease–associated PAH (e.g. systemic sclerosis/CREST), where severe pre-capillary PAH may decompensate in the ICU; the PAC allows diagnosis, PVR calculation, and titration of pulmonary vasodilators/inotropes. (Definitive workup is by right heart catheterisation in the catheter laboratory.)
• Cardiogenic shock — especially RV infarct, mechanical complications of MI (VSD, papillary muscle rupture), and titration of mechanical circulatory support (IABP, Impella, VA-ECMO) where knowing PA pressure, wedge, CO and SvO2 guides flow and unloading.
• Complex / mixed shock of unclear cause, or shock unresponsive to standard therapy.
• Differentiating pulmonary oedema from ARDS — a wedge >18 mmHg supports hydrostatic (cardiogenic) oedema.
• Perioperative high-risk cardiac surgery and selected major non-cardiac surgery, and cardiac tamponade vs constrictive pericarditis (equalisation of diastolic pressures).
• Heart transplantation assessment. [1]

Complications

Pulmonary artery rupture is the feared, often-lethal complication — present as sudden haemoptysis. Risk is highest in anticoagulated, older, female, hypertensive patients. Prevent by never leaving the balloon inflated, inflating slowly and stopping at the wedge, avoiding distal placement, and not repositioning the catheter with the balloon up. [1]

Why PAC use has declined — the evidence

The PAC fell from routine use after a run of studies showing no benefit and possible harm:[3][5][6][4]

• Connors (JAMA 1996) — observational study of 5,735 ICU patients suggesting PAC use in the first 24 h was associated with higher 30-day mortality (OR 1.24), longer stay and higher cost. Triggered the RCTs that followed.
• PAC-Man (Lancet 2005) — UK RCT, ~1,000 ICU patients; no difference in hospital mortality whether a PAC was used or not; PAC data often changed management but this did not improve outcome.[5]
• ESCAPE (JAMA 2005) — RCT in severe heart failure; PAC-guided therapy gave no improvement in days alive out of hospital, and more adverse events (21.9% vs 11.5%).[4]
• FACTT (NEJM 2006) — NHLBI ARDS Network 2×2 factorial in acute lung injury; PAC-guided vs CVC-guided therapy gave no mortality benefit (27.4% vs 26.3%, p=0.69) and more complications.[6]
• Cochrane meta-analyses confirm no overall mortality benefit.

Bottom line for the exam: the PAC is not dead — it is redeployed. It remains the gold standard when you genuinely need PA pressure, wedge pressure, true mixed SvO2, or to characterise complex pulmonary hypertension, RV failure, or cardiogenic shock on MCS. It is not a monitoring device for the general ICU patient.[10]

Transpulmonary thermodilution (PiCCO/TPTD)

PiCCO measures cardiac output and — uniquely — volume-based preload (GEDV), extravascular lung water (EVLW), and a calibrated continuous pulse-contour CO with SVV. It needs a central venous catheter (for the cold injectate) and a femoral arterial line carrying a thermistor. A cold bolus (15–20 mL ice-cold saline) injected into the CVC traverses the right heart, lungs, left heart and aorta, and is detected in the femoral artery; the temperature–time curve yields the measurements.[1][11]

What PiCCO measures

Why GEDV/EVLW matter

GEDV is a more reliable preload indicator than CVP or PAWP because it measures a volume rather than a distending pressure, and is less confounded by compliance and intrathoracic pressure.[1] EVLW is the standout parameter: it is a direct measure of lung water that predicts mortality in ARDS and septic shock (each 1 mL/kg PBW rise increases mortality; Sakka 2002), guides the fluid strategy (aim for a low or falling EVLW — the conservative-fluid philosophy), and is more sensitive than the CXR or the wedge pressure for detecting pulmonary oedema.[11] The PVPI helps separate hydrostatic from permeability oedema — useful when the CXR is white-out and you need to decide between diuresis and lung-protective ventilation.

Limitations and practical points

• Requires a femoral arterial line (radial thermodilution is less accurate for GEDV/EVLW).
• Affected by intracardiac shunts (over/underestimates), severe aortic regurgitation, and extracorporeal circuits.
• The continuous pulse-contour CO must be recalibrated by thermodilution every 6–12 h, and after any major haemodynamic change (change in vascular tone, new vasopressor, fluid bolus) — the calibration "ages".
• EVLWI must be interpreted with the predicted body weight (actual weight overestimates in oedema/obesity). [1]

Lithium dilution (LiDCO)

LiDCO calibrates a pulse-contour algorithm using a lithium dilution curve rather than thermodilution. A small bolus of lithium chloride (0.002–0.003 mmol/kg) is injected via a central or peripheral venous line; the lithium concentration–time curve is detected by a lithium-selective electrode placed in a peripheral arterial line (radial is fine), and the area under the curve gives the cardiac output. That CO calibrates the PulseCO pulse-contour algorithm, which then gives continuous CO, SVV and PPV from the arterial trace.[1]

LiDCO therefore suits the patient who needs calibrated continuous CO and SVV but for whom a femoral line is undesirable. Like all pulse-contour systems, it loses accuracy when vascular tone swings (sepsis, vasoactive drugs), so recalibrate after major changes. [1]

Pulse contour analysis (calibrated vs uncalibrated)

Pulse contour analysis derives a continuous stroke volume and cardiac output from the arterial pressure waveform, using the principle that the area under the systolic part of the arterial curve is proportional to stroke volume. Two families:[1]

• Calibrated (LiDCO = lithium; PiCCO = thermodilution): a dilution measurement periodically "tunes" the algorithm to the patient's vascular compliance. More accurate; requires recalibration.
• Uncalibrated (FloTrac/Vigileo, ProAQT, LiDCOrapid "auto-calibrated"): estimate vascular compliance from the waveform itself plus patient demographics (age, sex, weight). No injectate, no extra line — just the arterial catheter. Easier, but less accurate, and they drift when vascular tone changes (vasopressors, sepsis, anaesthesia). Use for trends, not absolute values, and re-check against an independent method. [1]

[1]

Echocardiography as a haemodynamic monitor

Echocardiography is the most versatile monitoring tool in the ICU: non-invasive, rapid, repeatable, and able to answer the central haemodynamic questions at the bedside — is the heart failing, is it empty, is there obstruction (tamponade/PE), and what is the cardiac output? It bridges the basic and advanced tiers.[1][8]

Basic (focused) vs advanced (quantitative) echocardiography

[1]

Measuring cardiac output — the LVOT VTI method

SV = LVOT area × LVOT VTI, where LVOT area = π × (d/2)² from the LVOT diameter d measured in the long axis (5-chamber view), and LVOT VTI is the velocity–time integral from pulsed-wave Doppler in the 5-chamber/apical long-axis view. CO = SV × HR. Repeating the VTI before and after an intervention (PLR, fluid bolus, inotrope) tracks the response — a ≥10–15% rise in VTI after PLR = fluid responsive. This is the most practical echo-based fluid-responsiveness test and needs only basic Doppler skills.[1]

When to escalate to transoesophageal echo (TOE)

• Poor transthoracic windows (obesity, surgical emphysema, dressings, pacing wires).
• Posterior structures: mitral prosthesis, left atrial appendage thrombus, aortic dissection, endocarditis vegetations.
• Unexplained haemodynamic instability with an uninformative TTE.
• Intraoperative cardiac surgery; cardiac arrest (PEA — identify reversible cause). [1]

Limitations of echocardiography as a monitor

It is intermittent (snapshots, not continuous), operator-dependent, qualitative unless advanced-certified, and limited by image quality. It complements — but does not replace — continuous invasive monitoring in the unstable patient. The strength is the first look in any unexplained shock: failing, empty, or obstructed. [1]

Derived and advanced haemodynamic parameters

All CO devices ultimately feed the same derived variables. Knowing the equations is high-yield.[1][8]

SvO2 vs ScvO2: ScvO2 (from a central line in the SVC) is a reasonable surrogate for SvO2 (true mixed venous, from the PA via a PAC) but they diverge in shock — the splanchnic bed desaturates disproportionately, so ScvO2 may be higher than SvO2 in shock. The PAC gives the true mixed value; a central line gives an approximation adequate for most resuscitation. [1]

Landmark trials in haemodynamic monitoring

[1]

Exam practice

[1]

Sample Viva 1 — The arterial line trace

Examiner: "You are called because the arterial line pressure looks very high. The trace is tall and spiky with ringing. How do you assess it?" [1]

Expected response: "I would perform a fast-flush (square-wave) test: briefly open the flush valve and release. If there are many oscillations that ring before settling, the system is underdamped — the systolic is spuriously high and the diastolic spuriously low, but the MAP is preserved. So I would trust the MAP, disregard the systolic, and correct the system by adding a damping device or shortening the tubing. If the test showed a slurred return with no oscillations, it would be over-damped (air bubble/kink/clot) — I would flush out bubbles, check for kinks, and aspirate for clot." [1]

Follow-up: "Where should you read the systolic pressure — radial or femoral?" [1]

Response: "In a stable patient the radial is acceptable, but it reflects peripheral pressure — systolic is amplified ~5–15 mmHg above central aortic pressure, while MAP and diastolic are close. In shock, severe vasoconstriction, or hypothermia the periphery vasoconstricts first and the radial under-reads; a femoral line gives a more reliable central pressure. I would use the femoral in this unstable patient." [1]

Sample Viva 2 — Choosing the monitor

Examiner: "A patient with severe systemic-sclerosis-associated pulmonary hypertension is admitted in pulmonary hypertensive crisis, hypotensive and hypoxic. What haemodynamic monitoring will you use and why?" [1]

Expected response: "This is one of the legitimate indications for a pulmonary artery catheter. CTD-associated PAH is pre-capillary pulmonary hypertension with a vulnerable, pressure-overloaded right ventricle; in crisis the RV fails, CO falls, and systemic hypotension compromises coronary perfusion of the RV. I need to know the mPAP, PA diastolic and wedge (to confirm pre-capillary PAH and exclude a post-capillary contribution), the PVR, the CO and the mixed SvO2 — and to titrate pulmonary vasodilators (inhaled nitric oxide, prostacyclin) and inotropes/vasopressors against these numbers. The PAC also lets me monitor RV failure and the response to therapy. An echocardiogram (RV size, septal shift, TAPSE, RVSP from the TR jet) complements but does not replace the PAC for pressure measurement. I would also place an arterial line (continuous BP) and ensure pacing is available, as right-heart catheterisation can provoke arrhythmia." [1]

Follow-up: "What are the specific risks of a PAC in this patient?" [1]

Response: "Pulmonary artery rupture is the feared complication and this patient has several risk factors: pulmonary hypertension itself, likely anticoagulation, and a stiff, hypertensive PA tree. I would avoid distal wedging, inflate the balloon slowly and stop as soon as the wedge trace appears, never leave the balloon inflated, and not advance against resistance. Arrhythmia and transient right bundle branch block are also risks — if she had a pre-existing left bundle branch block I would ensure pacing is available before insertion, because the catheter can cause complete heart block." [1]

Clinical pearls

Red flags
