Point-of-care ultrasound (POCUS): comprehensive ICU applications · ICU Topics

pocus-comprehensive-icu-applications clinical overview for ICU fellowship exams — FigureExam overview — key physiology, red flags and first-hour management.

Management algorithm for pocus-comprehensive-icu-applications — FigureStepwise ICU management: immediate priorities, disease-specific therapy, escalation.

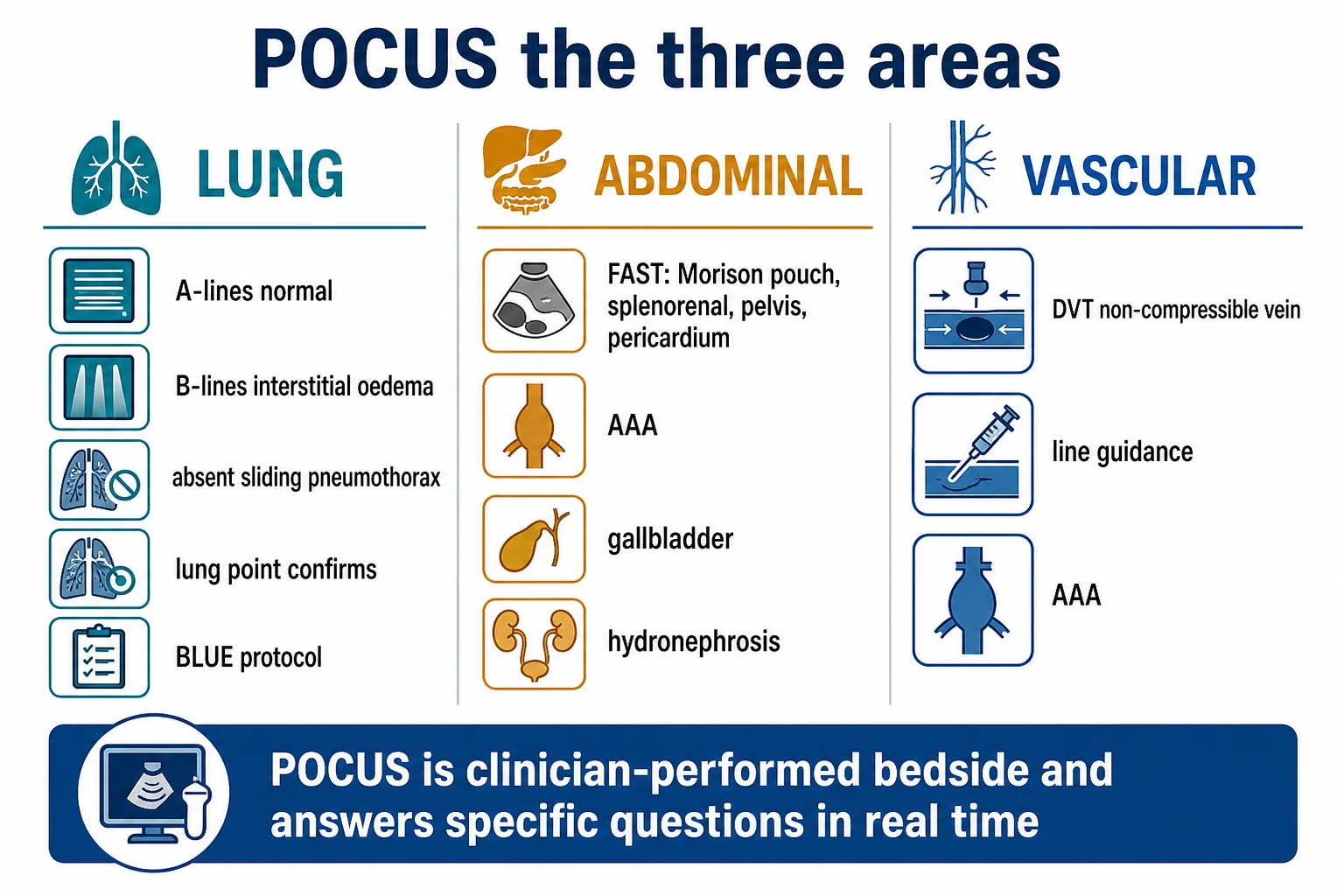

Classification framework for pocus-comprehensive-icu-applications — FigureClassification / severity framework used in written and viva answers.

Focused echocardiography (FOCUS / FATE)

FOCUS (Focused Cardiac Ultrasound) and FATE (Focus Assessed Transthoracic Echocardiography) are the two most widely adopted ICU focused-echo protocols. Both answer the same five questions within 2–3 minutes: (1) Is LV systolic function normal, hyperdynamic, or depressed? (2) Is the RV normal or dilated? (3) Is there a pericardial effusion, and is there tamponade physiology? (4) Is the patient volume-depleted (small/hyperdynamic LV, small IVC) or volume-overloaded (distended IVC, B-lines)? (5) Is there gross structural/valvular abnormality? FATE differs only in mandating a subcostal view first (obtainable in nearly any supine ventilated patient) and in explicitly integrating lung and pleural windows.[9][12]

Probe and machine setup. Use a phased-array (cardiac) probe at 1.5–5 MHz, depth 15–18 cm for adults, cardiac preset. The cardiac indicator (probe marker) is on the RIGHT side of the screen. Depth on the lung preset drops to 4–6 cm to see the pleural line.

[12]

The four standard FOCUS/FATE views

[12]

1. Parasternal long-axis (PLAX)

Place the probe at the 3rd–4th left intercostal space at the parasternal edge, indicator toward the RIGHT shoulder. The optimal plane slices from the right shoulder to the left hip and demonstrates: RV outflow tract (nearest field), LV cavity, left atrium, descending thoracic aorta (far field, longitudinal), the anterior mitral leaflet and aortic valve, and the pericardium as a bright echogenic line.

[8]

What to assess:

LV size and systolic function. Normal LV end-diastolic diameter (LVEDD) ≈ 3.5–5.3 cm (women) / 3.5–5.8 cm (men) on ASE 2015 reference. Dilated (>5.8 cm) = chronic dilated cardiomyopathy / chronic AR/MR. Eyeball EF: (a) hyperdynamic — LV walls nearly obliterate the cavity in systole ("kissing walls", EF >70%) → hypovolaemia or high-output/distributive state; (b) normal — roughly half the chamber shortens (EF 50–70%); (c) mild–moderately depressed (EF 30–50%); (d) severely depressed — barely any inward motion (EF <30%). Inter-rater agreement of eyeball EF by a competent operator is ±10% of biplane Simpson's.
RV size. The RV should be only a small sliver at the top of PLAX; if it occupies >1/3 of the image width or is globular, suspect RV dilatation.
Aortic root. Measure at end-systole, leading-edge to leading-edge at the level of the sinus of Valsalva: >3.8 cm is dilated. A dissection flap is an intimal linear echo in the descending aorta (far field).
Pericardial effusion. An anechoic stripe anterior to the RVOT and/or posterior to the LV. Posterior-only effusion suggests chronic; circumferential suggests acute. Anechoic fluid tracking ONLY anterior to the aortic root is a pericardial fat pad, not an effusion.
Valves (gross). Heavy calcification of the AV = aortic stenosis; prolapsing//flail MV leaflet = severe MR; a "rocking" AV or MV = endocarditis until disproven (but vegetations <2 mm are missed on POCUS — formal echo required).

[8]

2. Parasternal short-axis (PSAX)

From PLAX, rotate 90° clockwise so the indicator points to the LEFT shoulder. The LV appears as a circular doughnut. Fan from base to apex through three levels: mitral level (fish-mouth MV), papillary level (symmetric papillary muscles — the workhorse view), and apical level.

[5]

What to assess:

Global and regional LV function. All segments should thicken and move inward symmetrically. A hypokinetic/akinetic territory = regional wall motion abnormality (LAD = anterior/septal; RCA = inferior; LCx = lateral/posterior).
Septal motion — the RV overload sign. A normal interventricular septum is concave toward the RV (the LV is round). Flattening of the septum producing a D-shaped LV indicates RV pressure/volume overload: diastolic flattening = volume overload; systolic flattening = pressure overload (PE, pulmonary HTN). This is one of the most reliable POCUS signs of RV strain.
RV size. The RV is normally a thin crescent; if it wraps around the anterior LV and equals or exceeds LV size, RV is dilated.
Pericardial effusion and tamponade. Circumferential effusion is best quantified here. Look for RV free-wall diastolic collapse — invagination of the RV wall in early diastole — a sensitive sign of tamponade.

[6]

3. Apical 4-chamber (A4C)

Place the probe at the point of maximal impulse with the patient in a slight LEFT lateral decubitus, indicator pointing to the patient's LEFT. This is the single most informative view for the intensivist because all four chambers are compared side-by-side.

[8]

What to assess:

RV:LV ratio. In A4C the RV should be <60% of the LV area in end-diastole (ASE 2015). RV:LV >0.6 = RV dilatation; >1.0 = severe. RV size larger than LV in this view is abnormal and the key POCUS trigger to think PE, pulmonary HTN, RV infarct, ARDS cor pulmonale, or chronic RV failure.
McConnell's sign. RV apex hyperkinetic with free-wall hypokinesis — highly specific (94%) but insensitive (~48%) for PE. Also seen in RV infarct.
Atrial size. RA/RV larger than LA/LV suggests chronic right-sided pathology (pulmonary HTN, tricuspid disease). Dilated LA = chronic LV failure / mitral disease / AF.
LV function & apical thrombus. Look for apical ballooning (takotsubo, LAD infarct) and LV apical thrombus (post-MI).
Tricuspid regurgitation jet (TR v-max). If colour Doppler available: v-max >2.8 m/s or 3.0 m/s suggests elevated pulmonary artery systolic pressure (PASP). Continuous-wave can estimate PASP = 4 × (TR v-max)² + RA pressure (estimated from IVC).
Pericardial effusion / RA collapse. Right atrial collapse in late diastole/systole for >1/3 of the cardiac cycle is the most sensitive echocardiographic sign of tamponade.

[4]

4. Subcostal

Place the probe just below the xiphoid process, flat against the abdomen, aimed toward the left shoulder, indicator to the patient's LEFT. Fan through the liver to obtain a 4-chamber view. This is the CPR view — the only view obtainable without interrupting chest compressions.

[1]

What to assess:

Pericardial effusion. Fluid is most easily distinguished here from the bright liver (anechoic fluid between liver/diaphragm and RV free wall). Tamponade: RA systolic collapse, RV diastolic collapse, IVC plethora.
IVC for volume. From the subcostal 4-chamber, rotate the probe 90° counterclockwise to image the IVC in long-axis entering the RA. Measure 1–2 cm from the RA junction. Cut-offs (with major caveats — see IVC pearl): <1.5 cm and >50% collapse with sniff → CVP <5 mmHg (likely fluid responsive); >2.5 cm and <20% collapse → CVP >15 mmHg (unlikely fluid responsive). Intermediate = indeterminate.
Subcostal IVC in cardiac arrest. A small, completely collapsed IVC during CPR suggests reversible hypovolaemia; a distended, fixed IVC with no collapse suggests obstructive cause (tamponade, massive PE, tension PTX).
Subcostal lung windows. Angle to either side of the heart to look for B-lines, consolidation, or effusion in dependent lung.

[8]

Tamponade — the POCUS checklist. Effusion + (RA systolic collapse OR RV diastolic collapse) + IVC plethora + tachycardia + hypotension / muffled heart sounds = tamponade until proven otherwise. POCUS can also identify loculated post-surgical effusions (regional tamponade — no IVC plethora, asymmetric chamber collapse) which formal echo is needed to characterise. If clinically tamponading and unstable → pericardiocentesis guided by POCUS.[9]

Lung ultrasound and the BLUE protocol

Technique. Use the phased-array or curvilinear probe in lung preset, depth 4–6 cm (just deep enough to see the pleural line). The pleural line lies between the shadow of the ribs (bat sign) — a bright horizontal line that shimmers with respiration (lung sliding). Assess a minimum of 8 zones (4 per hemithorax: upper/lower anterior, upper/lower lateral) — the BLUE protocol uses 3 points per side (upper anterior, lower anterior, lateral) and adds posterior zones if supine.

[4]

The 5 fundamental lung signs (Lichtenstein)

A-lines — horizontal reverberation artefacts below the pleural line = normal aeration (air).
B-lines — vertical comet-tail artefacts arising from the pleural line, erasing A-lines, moving with sliding. ≥3 B-lines in a single intercostal space in a longitudinal plane = interstitial syndrome. Causes: pulmonary oedema, interstitial pneumonia, pulmonary fibrosis, ARDS.
Consolidation (hepatization / tissue-like pattern) — lung looks like liver/spleen with dynamic air bronchograms (pneumonia) or static bronchograms (atelectasis).
Pleural effusion — anechoic (black) collection above the diaphragm with atelectatic lung floating inside; can be quantified (depth × simple formulas approximate volume).
Absent lung sliding ± lung point — pneumothorax. The lung point (junction of sliding and non-sliding lung) is pathognomonic and specific (near 100%); it also allows crude size estimation (more lateral/large field = larger PTX).

BLUE protocol — diagnosing acute respiratory failure

Lichtenstein's algorithm (90.5% correct first diagnosis in the original derivation cohort) integrates lung findings with venous (DVT) ultrasound. The order of decision-making:

[4]

Caveats to the profiles. The BLUE profiles are a scaffold, not gospel: decompensated COPD can produce B-lines (cor pulmonale); ARDS produces bilateral B-lines (indistinguishable from pulmonary oedema by pattern alone — differentiate by the heart: depressed LV + B-lines = cardiogenic; normal heart + B-lines + reduced lung compliance = ARDS). Asymmetric pneumonia can be missed if scanning zones are too few. The original 90.5% accuracy is a derivation-set figure; real-world performance is lower and drops further in mixed ICU populations — POCUS narrows, it does not close, the differential.[4][2]

Abdominal ultrasound (FAST, bladder, AAA, organs)

Use the curvilinear probe (2–5 MHz), abdominal preset, depth 15–20 cm.

[11]

FAST / eFAST

Four (five with eFAST) windows looking for free peritoneal/pericardial (or pleural) fluid:

RUQ — Morison's pouch (hepatorenal recess): the most dependent supine peritoneal space and the most sensitive single FAST view. Anechoic stripe between liver and kidney = positive.
LUQ — splenorenal recess + subphrenic space: left-sided bleeds (splenic injury) are easily missed; angle the probe coronally in the mid-to-posterior axillary line.
Suprapubic (pelvic): bladder as an acoustic window; look behind/female pouch of Douglas/male retrovesical. A full bladder improves the view; ask to scan before Foley decompression.
Subxiphoid (pericardial): pericardial fluid (tamponade) — same window as subcostal cardiac.
eFAST — bilateral anterior thorax: lung sliding present = no PTX; absent sliding ± lung point = PTX. Replaces the supine CXR for occult PTX in trauma.

Sensitivity for clinically significant intra-abdominal bleed ≈ 60–90% (better for >500 mL); negative FAST does NOT exclude injury — unstable with blunt trauma goes to theatre regardless. FAST detects free fluid only — it misses retroperitoneal bleed (pelvic fracture), hollow viscus injury, and solid-organ injury without haemoperitoneum.[3]

Bladder volume

Place the probe suprapubically in transverse, measure width (W) and height (H); rotate 90° to sagittal and measure depth/length (L). Volume ≈ W × H × L × 0.75 (mL) (or ×0.7). Use: post-void residual (PVR >150–200 mL suggests urinary retention), confirm retention before Foley, estimate urine output in oliguria when no catheter, and guide suprapubic catheter placement.

[6]

Abdominal aortic aneurysm (AAA) screening

From the subcostal/xiphoid window, scan in the midline in transverse, following the aorta from the diaphragmatic hiatus to the bifurcation. Measure the antero-posterior diameter, outer-to-outer wall, in transverse at the largest point (usually just below the renal arteries). ≥3 cm = aneurysmal. Risk of rupture rises sharply above 5.5 cm (the threshold for elective repair in men; 5.0 cm in women in many guidelines). In unexplained hypotension/back pain in an older man, an aortic dissection flap (intimal linear echo separating true/false lumen) or a ruptured AAA (loss of wall continuity, retroperitoneal fluid) must be sought — a POCUS AAA finding in shock mandates immediate vascular surgical input, not waiting for confirmatory CT if unstable.

Other abdominal applications

Gallbladder (RUQ): stones (echogenic with shadow), wall thickening >3 mm (oedematous — cholecystitis, or hypoalbuminaemia/fluid overload in ICU), pericholecystic fluid, sonographic Murphy's.
Kidneys: hydronephrosis (dilated anechoic collecting system) — obstructive AKI; small echogenic kidneys = chronic disease; enlarged = AKI.
Bowel: pneumatosis / absent peristalsis / fluid-filled loops in mesenteric ischaemia (low sensitivity); dilated loops >3 cm + intra-luminal fluid = ileus/obstruction.
Ascites / collections: map the largest pocket for paracentesis/drains; mark entry site and measure depth to avoid bowel/solid organs.

Vascular access ultrasound

Ultrasound guidance for central and peripheral vascular access is now standard of care — it reduces mechanical complications of IJV cannulation by ~70% (pneumothorax, arterial puncture, haematoma) and increases first-pass success.[7][11]

Central venous catheter (CVC) — internal jugular vein

Set-up. High-frequency linear probe (5–13 MHz), vascular preset, depth 3–4 cm. Patient supine, head turned slightly away, in slight Trendelenburg. The IJV lies lateral/superficial, the carotid medial and deep; light transducer pressure (the IVC/IJV collapse easily with pressure).

Short-axis (out-of-plane) vs long-axis (in-plane):

Short-axis / out-of-plane (SAX-OOP): probe transverse to the vessel; vessel is round, needle seen as a bright dot crossing into it. Tracks needle tip accurately across the screen, easier to keep both vessel and carotid in view, lower risk of posterior wall puncture if tip is followed. Most commonly used.
Long-axis / in-plane (LAX-IP): probe aligned with the vessel; entire needle shaft seen advancing into a tubular vessel. Higher first-pass success but operator must keep the needle in the ultrasound plane — lateral/medial deviation is invisible, so risk of inadvertent carotid/posterior wall puncture is real if alignment is lost.
Best practice. Pre-procedure "scout" scan (confirm patency — ensure the vein is fully compressible, rule out thrombus), then real-time guidance during puncture, with the needle tip visualised at all times. Confirm venous (compressible, non-pulsatile, resizable with Valsalva) vs arterial (pulsatile, thick wall, non-compressible).

[11]

Arterial line guidance

Use a high-frequency linear probe, depth 1.5–2.5 cm. The radial artery is identified at the wrist lateral to the flexor carpi radialis tendon; short-axis/out-of-plane with dynamic needle tip tracking is the workhorse for difficult radial cannulation, and modified Seldinger/catheter-over-wire kits improve success. For the femoral artery, in-plane guidance lowers the risk of posterior wall injury and pseudoaneurysm. Ultrasound is especially valuable in: obesity, oedema, scars, hypotension/shock (non-palpable pulses), paediatric/pulseless patients, and after failed landmark attempts.

Peripheral IV under ultrasound (deep / difficult access)

Useful when superficial veins are exhausted. Identify the deep brachial, basilic, or cephalic veins in the upper arm with the linear probe; these are compressible, anechoic, non-pulsatile. In-plane technique with a longer cannula (≥4.5 cm to span the vessel wall fully) is recommended. Pitfalls: inadvertently cannulating the brachial artery (always confirm compressibility and lack of pulsatility), transfixing the vein, and catheter kinking if the vein is too deep.

Compression ultrasound for DVT

Two-point or whole-leg compression: apply probe pressure to collapse the femoral/popliteal vein against the underlying bone. Fully compressible = no DVT; non-compressible = DVT (the most important criterion; Doppler adds little in symptomatic patients). This is the "pipes" step of RUSH and the venous step of BLUE — a non-compressible femoral vein in a shocked, dyspnoeic patient is strong support for PE.

Clinical pearls

High-yield POCUS points for CICM/FFICM exam

POCUS is NOT formal echocardiography. POCUS = focused, limited, question-directed (is LV hyperdynamic? is there effusion? is IVC small?). Formal echo = comprehensive (full structural/functional assessment, quantification, reporting by cardiologist/sonographer). POCUS does NOT replace formal echo when: (a) new murmur, (b) suspected valvular pathology, (c) need quantitative measures (EF%, RVSP), (d) endocarditis suspected. ALWAYS: document POCUS limitations — if abnormal or unclear → formal study.[1] }
Lung ultrasound — 5 fundamental signs (Lichtenstein). (1) A-LINES: horizontal reverberation artefacts = NORMAL aeration (air). (2) B-LINES: vertical comet-tail artefacts from pleura = INTERSTITIAL syndrome (water — pulmonary oedema, interstitial pneumonia, fibrosis). (3) CONSOLIDATION (hepatization): tissue-like lung = alveolar filling (pneumonia, atelectasis, infarction). (4) PLEURAL EFFUSION: anechoic collection + lung (atelectatic) floating = fluid. (5) ABSENT LUNG SLIDING + LUNG POINT = PNEUMOTHORAX (lung point = specific, at edge of PTX).[4] }
BLUE protocol — diagnoses acute respiratory failure. Lichtenstein's algorithm using lung + venous ultrasound. PROFILES: (a) A-profile (A-lines + lung sliding, no DVT) = asthma/COPD (or metabolic). (b) A-profile + DVT = PULMONARY EMBOLISM. (c) B-profile (B-lines bilateral + lung sliding) = PULMONARY OEDEMA. (d) B' profile (B-lines + ABSENT sliding) = pneumonia. (e) A/B profile (unilateral B-lines) = pneumonia. (f) C-profile (consolidation) = pneumonia. Accuracy: 90.5% correct diagnosis.[4] }
IVC assessment — volume/responsiveness (with CAVEATS). (1) SMALL + COLLAPSIBLE IVC (<1.5 cm, >50% collapse with sniff) = LOW CVP (<5 mmHg) → likely fluid responsive. (2) LARGE + PLETHORIC IVC (>2.5 cm, <20% collapse) = HIGH CVP (>15 mmHg) → UNLIKELY fluid responsive. (3) INTERMEDIATE = indeterminate. CAVEATS: (a) IVC less reliable in spontaneously breathing (intrathoracic pressure varies). (b) Less reliable in obese, post-abdominal surgery. (c) Best for EXTREMES (very small or very distended). (d) IVC correlates POORLY with fluid responsiveness in the MIDDLE range (most patients). Use: passive leg raise or fluid challenge for definitive assessment.[6] }
Pneumothorax — lung ultrasound MORE sensitive than CXR. (1) SIGNS: (a) ABSENT LUNG SLIDING (no shimmering at pleural line). (b) ABSENT B-LINES (B-lines originate from pleura — PTX separates pleural layers → no B-lines). (c) LUNG POINT (junction of sliding/absent sliding — PATHOGNOMONIC — but only seen if PTX not complete). (2) SENSITIVITY: lung US 90% vs CXR 50% for occult PTX. (3) SPECIFICITY: lung sliding present = NO PTX (very high). (4) LOCATION: anterior/superior chest (PTX rises when supine). (5) CAVEAT: can't estimate SIZE (need CXR/CT) — but if lung point seen = partial (smaller).[2] }
Cardiac POCUS — 5 key questions. (1) Is LV SYSTOLIC FUNCTION normal, hyperdynamic, or depressed? (eyeball EF). (2) Is RV NORMAL or DILATED (>LV size in apical 4-chamber, septal flattening)? RV dilation = PE, RV infarct, pulmonary HTN. (3) Is there PERICARDIAL EFFUSION? If yes: signs of tamponade (RA collapse in systole, RV collapse in diastole, IVC plethora). (4) Is LV HYPERDYNAMIC (kissing walls) with small cavity = HYPOVOLAEMIA? (5) Is there marked LV HYPERTROPHY/DILATION = chronic pathology? These 5 answer most urgent ICU questions within 2-3 minutes.[1] }
POCUS-guided procedures — STANDARD OF CARE. (1) CENTRAL VENOUS CATHETER (CVC): ultrasound-guided insertion REDUCES mechanical complications by 70% (pneumothorax, arterial puncture, haematoma) and increases first-pass success. Internal jugular (IJV) — visualise before/during; identify carotid artery medial. Femoral — visualise vein/artery. (2) THORACENTESIS: measure effusion depth, mark insertion site, avoid diaphragm/lung — reduces pneumothorax/organ injury. (3) PARACENTESIS: mark largest pocket, avoid bowel/solid organs. (4) ARTERIAL LINE: radial artery visualisation for difficult cannulation. (5) ABSCESS DRAINAGE: identify collection, guide needle/drain.[5] }
FAST/eFAST — trauma and free fluid. (1) 4 VIEWS: (a) RIGHT UPPER QUADRANT (Morison's pouch — liver/kidney interface). (b) LEFT UPPER QUADRANT (splenorenal recess). (c) SUPRAPUBIC (pelvic — bladder behind). (d) SUBXIPHOID/PERICARDIAL (pericardial sac). (2) POSITIVE = anechoic (black) fluid = free blood (in trauma) or ascites (medical). (3) SENSITIVITY for intra-abdominal bleed: 60-90% (depends on volume — >500 mL more reliably detected). (4) eFAST adds LUNG views for PNEUMOTHORAX. (5) LIMITATIONS: (a) Doesn't detect retroperitoneal bleed. (b) Doesn't detect hollow viscus injury (bowel). (c) Negative FAST doesn't exclude injury — if unstable/clinical concern → CT or OR.[3] }
B-lines — the differential. B-lines = increased lung water/interstitial thickening. BILATERAL B-lines: (1) PULMONARY OEDEMA (cardiogenic — LV failure). (2) ARDS (non-cardiogenic — increased permeability). (3) BILATERAL PNEUMONIA. (4) INTERSTITIAL LUNG DISEASE (fibrosis). UNILATERAL/LOCALISED B-lines: (1) UNILATERAL PNEUMONIA. (2) ATELECTASIS. (3) CONTUSION (post-trauma). CLUE: if B-lines + NORMAL heart → non-cardiogenic (ARDS/pneumonia). If B-lines + DEPRESSED LV → cardiogenic oedema.[2] }
RV strain on POCUS — PE clues. In unexplained hypoxia/hypotension/tachycardia: check RV. SIGNS of RV STRAIN (PE): (1) RV DILATION (RV:LV >0.6 in apical 4-chamber — RV larger than LV). (2) SEPTAL FLATTENING (D-shaped LV in parasternal short axis — septum bows into LV in systole). (3) MCCONNELL'S SIGN (RV apex hyperkinetic, free wall hypokinetic — specific but not sensitive). (4) TR JET (if visible — elevated velocity = pulmonary HTN). (5) IVC PLETHORIC (no collapse — high right-sided pressures). If RV strain + DVT on compression US + clinical suspicion → PE (consider thrombolysis if unstable).[4] }
FALLS protocol (Fluid Administration Limited by Lung Sonography). For undifferentiated shock: (1) Give fluid (250 mL boluses) while watching LUNG ultrasound for B-lines. (2) If B-lines APPEAR → pulmonary oedema ceiling reached → STOP fluids → likely cardiogenic/obstructive shock. (3) If B-lines DON'T appear + venous Doppler shows DVT → obstructive (PE) shock. (4) If fluids tolerated (no B-lines) + shock resolves → distributive/hypovolaemic. Rationale: lungs detect fluid overload earlier than BP/HR.[4] }
Limitations of POCUS — what it CAN'T do. (1) Can't QUANTIFY cardiac function precisely (eyeball EF ± 10%; formal echo needed for exact). (2) Can't assess VALVES well (need formal echo for stenosis/regurgitation). (3) Can't detect ENDOCARDITIS vegetations reliably. (4) Can't REPLACE CT/MRI for anatomy. (5) LIMITED by: obesity, subcutaneous emphysema, bandages, surgical wounds, patient positioning. (6) Can't DETECT small pneumothorax without lung point (sensitive for absence of sliding but lung point needed for positive confirmation). (7) OPERATOR-DEPENDENT — untrained user = unreliable. DOCUMENT: limitations, views obtained, quality.[1] }
Training and competency. (1) POCUS competency: STRUCTURED training (course + supervised scans + portfolio + assessment). (2) ACCREDITATION: local/regional pathways (e.g., CEUS, FOCUS, FATE certifications). (3) SCOPE OF PRACTICE: clinician should ONLY use POCUS within their TRAINED competency. (4) DOCUMENTATION: every POCUS should be RECORDED (images + report in medical record). (5) QUALITY ASSURANCE: image review, QA sessions, continued professional development. (6) PATIENT SAFETY: POCUS = extension of clinical exam — NOT definitive diagnosis. If critical decision (thrombolysis, surgery) — corroborate with formal imaging/specialist.[5] }
POCUS changes ICU management in 30-50% of exams. Studies show bedside ultrasound leads to: (1) NEW diagnoses (effusion, tamponade, DVT, PTX not seen on CXR). (2) CHANGED therapies (fluid stopped due to B-lines, inotrope started for depressed LV, drainage for effusion). (3) PROCEDURE guidance (CVC, drains). (4) REDUCED radiation (replacing some CXR/CT). (5) FASTER decisions (at bedside — no transport). VALUE: 'stethoscope of the 21st century' — but only if user is competent.[6] }

View-by-view technique pearls and high-yield exam traps

PLAX pitfalls — the descending aorta and the fat pad. The descending thoracic aorta is the round/oval pulsatile structure in the far field of PLAX — a dissection flap appears as a mobile intimal line within it. The commonest false-positive effusion is a pericardial fat pad — it is echogenic, lies only anterior to the RVOT, does not extend posterior to the LV, and moves with the heart rather than tracking circumferentially. A true effusion is anechoic and tracks anterior AND posterior.[10] }
RV:LV ratio cut-offs you must know for vivas. In the apical 4-chamber, RV end-diastolic area should be <60% of LV area. 0.6–1.0 = mild–moderate dilatation; >1.0 = severe (RV larger than LV). Combine with paradoxical septal motion (D-shaped LV in PSAX) — the most reliable RV-overload sign on POCUS. McConnell's sign (apex-sparing RV hypokinesis) is specific but not sensitive, and is also seen in RV infarct, so it is supportive, not diagnostic, of PE.[9] }
Differentiating cardiogenic from non-cardiogenic B-lines — use the heart. Bilateral B-lines are non-specific (oedema, ARDS, pneumonia, fibrosis). The discriminator is the heart: B-lines + a normal/hyperdynamic LV → non-cardiogenic (ARDS, pneumonia) → manage the lung/cause. B-lines + a dilated/depressed LV or B-lines + a plethoric IVC → cardiogenic pulmonary oedema → diurese/off-load. Also: ARDS B-lines are often patchy with subpleural consolidations and a pleural line that is thickened/irregular; cardiogenic B-lines are diffuse and uniform with a normal pleural line.[2] }
The "eyeball EF" is a range, not a number — quote it as a category. Trained eyeball EF agrees with Simpson's biplane within ±10%, but only if reported as a category (hyperdynamic / normal / mild–moderately depressed / severely depressed). Quoting "EF 35%" from eyeballing overstates precision and misleads the team. If a quantitative number is needed for a decision (e.g. ICD implantation, TAVI sizing, discharge on sacubitril-valsartan) → order a formal study.[9] }
IVC in cardiac arrest and the post-arrest patient. During CPR, a completely collapsed, slit-like IVC suggests hypovolaemia as the reversible cause and supports a fluid challenge. A grossly distended, fixed IVC with no respiratory variation suggests obstructive arrest — tamponade, massive PE, or tension PTX — prompting the team to look specifically for an effusion, RV dilatation, or absent lung sliding. After ROSC, a plethoric IVC plus B-lines warns against further fluid; a small IVC supports cautious filling.[8] }
Out-of-plane vs in-plane for CVC — know when each wins. Short-axis/out-of-plane visualises the needle as a dot and lets you track the tip across the screen, keeping the carotid in view (safer for the learner). Long-axis/in-plane shows the whole needle entering the vessel and has higher first-pass success but the needle must stay in the ultrasound plane — drift off-plane is invisible and posterior-wall/carotid injury can occur. In practice: scout in short-axis, then choose the technique you can perform under direct vision; always confirm venous placement and rule out pneumothorax after IJV lines.[7] }
Beware the "mainstem intubation" and "apnoea" false-positive for PTX. Absent lung sliding is not pneumothorax until proven otherwise — the differential includes apnoea (deep sedation/neuromuscular block), mainstem intubation (the intubated hemithorax stops sliding when the tube is down the contralateral main bronchus), pleurodesis, severe pneumonia/consolidation, and large bullae. The M-mode "barcode" (seashore → stratosphere) sign confirms absent sliding but NOT the cause. Only the lung point confirms PTX; if no lung point is seen and the patient is high-risk, get a confirmatory CXR/CT.[2] }
Integrate, don't isolate — the serial/protocolised exam. Single-view POCUS misleads; the power is in the protocolised, repeatable exam. A shocked patient gets pump-tank-pipes + lung; a hypoxic patient gets lung + venous + heart; a trauma patient gets eFAST + lung + cardiac if shocked. Repeat after every intervention (post-fluid bolus IVC and lung windows; post-thrombolysis RV size; post-pleural-drain lung re-expansion). The change between two scans is more informative than any single snapshot — and it is exactly this dynamic, integrated use that justifies calling POCUS the "21st-century stethoscope".[3][11] }

Red flags

Critical POCUS red flags

POCUS is OPERATOR-DEPENDENT — inadequate training → misdiagnosis (false reassurance).[1] }
Does NOT replace formal echo/radiology — complementary; abnormal/unclear → formal study.[1] }
IVC intermediate range = indeterminate — don't rely on IVC alone for fluid responsiveness.[6] }
Lung sliding absent = PTX — but also seen in apnea, mainstem intubation, pleurodesis, pneumonia.[2] }
RV dilation = PE — but also pulmonary HTN, RV infarct, ARDS (cor pulmonale). Clinical context essential.[4] }
FAST negative doesn't exclude injury — unstable with blunt trauma → OR regardless.[3] }
POCUS during CPR has a low therapeutic yield — do not interrupt compressions to scan. POCUS in arrest is for reversible-cause detection only (tamponade, massive PE, tension PTX, severe hypovolaemia). The pulse check / 10-second subcostal window is the moment to look; prolonged scanning degrades CPR quality and is a common system error.[11] }
A "normal" POCUS does not exclude serious disease. Normal lung sliding misses a loculated/basal PTX; a normal-looking LV misses takotsubo/apical thrombus and most valve disease; a negative FAST misses retroperitoneal and hollow-viscus injury; a non-compressible-but-partially-compressible vein can hide a non-occlusive DVT. POCUS narrows the differential — it does not close it. Integrate with clinical picture and escalate to formal imaging when stakes are high.[1][10] }
