Ventilator Waveforms — Comprehensive (Scalars, Loops, Asynchrony)

Overview

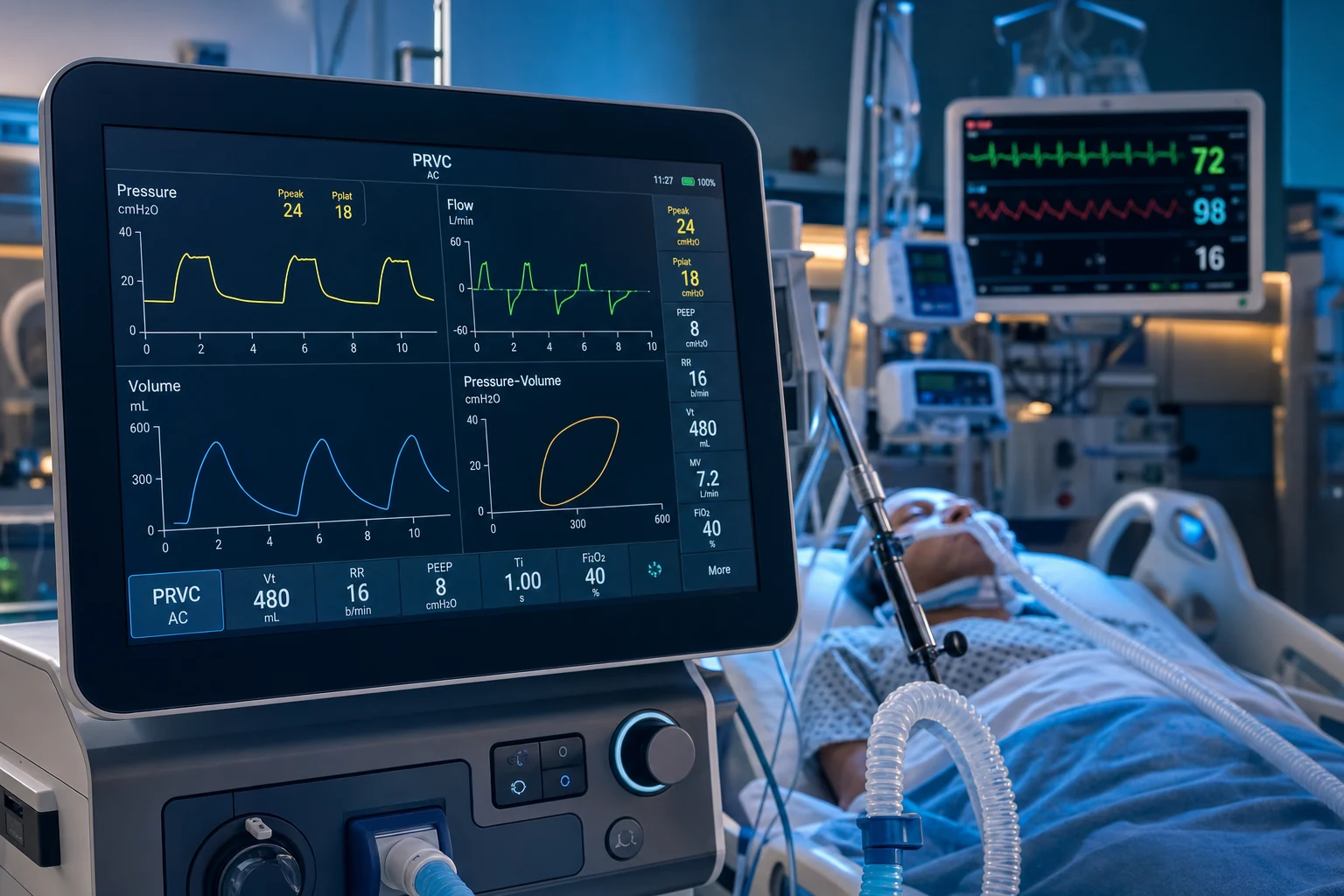

Scalar waveforms — pressure-time, flow-time, volume-time

[1]

Detailed Volume Control (VC) scalar analysis

In VC the ventilator delivers a PRESET VOLUME at a PRESET FLOW. Flow is the independent variable (the ventilator controls it); pressure and the resulting volume are dependent on the patient's mechanics. The three scalars must always be read together — never interpret one in isolation. [1]

Pressure–time scalar in VC

The pressure–time waveform in VC rises from PEEP to a peak (PIP), then — during an inspiratory hold — drops to plateau (Pplat), before falling back to PEEP at expiration. The three-pressure "PIP-Pplat-PEEP" method splits the pressure waveform into its two physical components: [1]

[1]

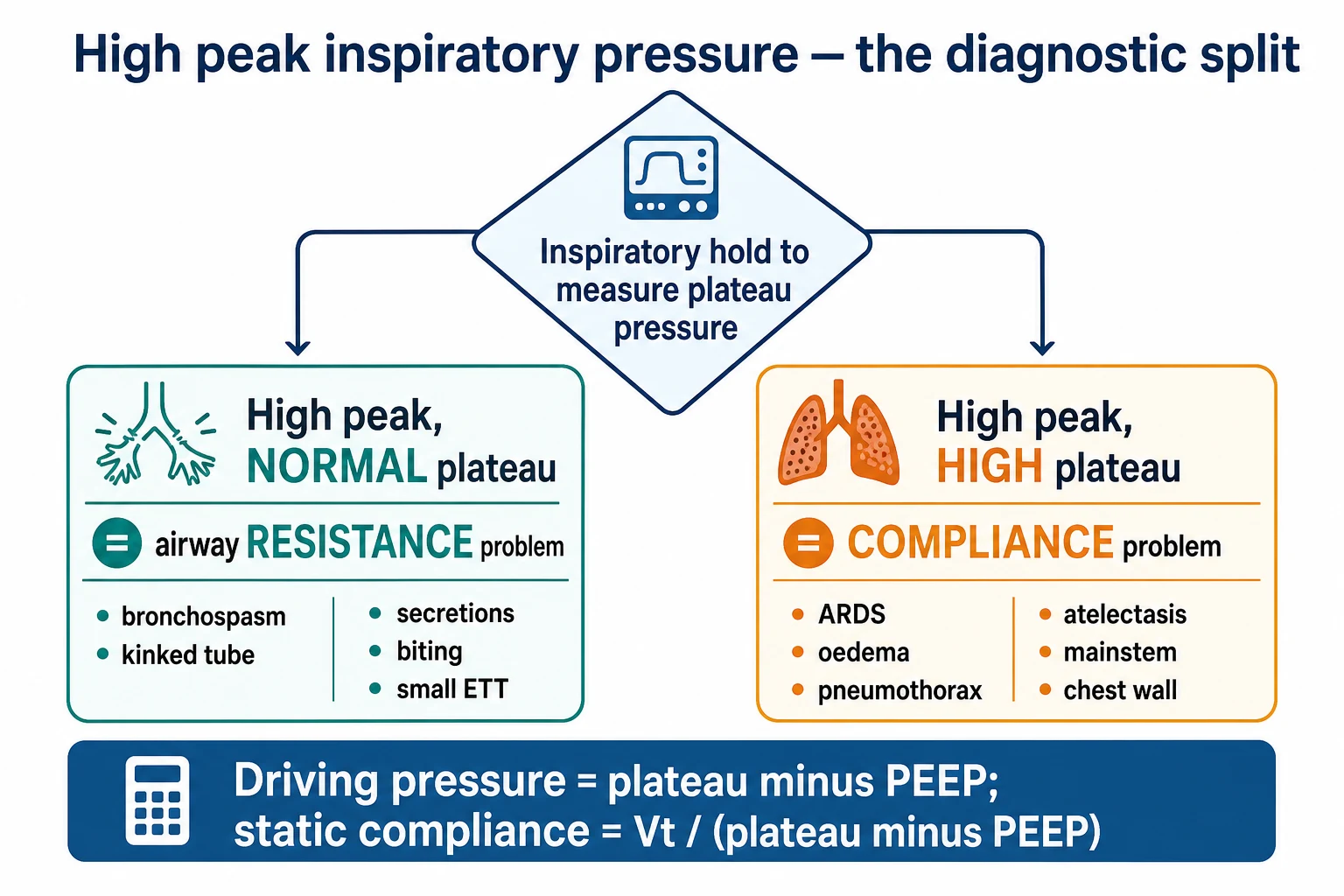

Reading the three numbers in sequence — the diagnostic algorithm:

1. High PIP with NORMAL Pplat → the gradient (PIP – Pplat) is widened → RESISTANCE problem. Causes: bronchospasm, secretions/mucus plug, kinked or bitten ETT, ETT too small for patient size, circuit obstruction (water in tubing), patient coughing/bucking. Fix the airway, not the ventilator.
2. High PIP with HIGH Pplat (gradient normal at 4–6) → COMPLIANCE problem. Causes: ARDS, pulmonary oedema, tension pneumothorax, atelectasis, main-stem intubation, chest-wall restriction (obesity, burns, ascites, prone positioning), or simply excessive Vt/PEEP. Reduce Vt or fix the cause (chest tube, tube repositioning, diuresis).
3. Sudden rise in BOTH PIP and Pplat → acute derecruitment (mucus plug, endobronchial intubation, pneumothorax) or a change in chest-wall compliance (abdominal distension, patient fighting the ventilator).
4. Low PIP and low Pplat → circuit leak or disconnect (the ventilator cannot build pressure) — check the circuit, cuff, and connections. [1]

Shape of the inspiratory pressure rise: in VC the pressure rises in a smooth concave-down curve as volume accumulates against compliance. A convex notch or downward deflection mid-inspiration = patient effort against the fixed flow = FLOW ASYNCHRONY (the patient wants more flow than the ventilator is delivering). A notch at the start of inspiration (before flow begins) = trigger asynchrony. [1]

Flow–time scalar in VC

The hallmark of VC is a SQUARE inspiratory flow waveform (constant flow set by the ventilator). The two available inspiratory flow patterns: [1]

[1]

The expiratory limb is where auto-PEEP is detected. In the normal breath, expiratory flow returns to ZERO (the zero-flow baseline) BEFORE the next inspiration begins. If expiratory flow does NOT reach zero → gas is still leaving the lung when the next breath starts → INCOMPLETE EXPIRATION → AUTO-PEEP (intrinsic PEEP). The magnitude of residual flow at end-expiration correlates with the severity of gas trapping. Confirm quantitatively with an expiratory hold. [1]

Inspiratory flow settings that matter:

• Peak flow (L/min): determines inspiratory time at a given Vt. Higher peak flow → shorter inspiratory time → longer expiratory time → better for obstructive disease (COPD, asthma — gives time to exhale, reduces auto-PEEP). Lower peak flow → longer inspiratory time → better gas distribution in ARDS/recruitable lung. Typical setting 40–60 L/min; in COPD may need 60–80 L/min to maximise expiratory time.
• Flow trigger: the inspiratory flow the patient must generate to trigger a breath. Too insensitive (high threshold) → missed triggers; too sensitive → auto-triggering from circuit noise. Typical 1–2 L/min flow trigger.
• Flow acceleration/rise time: how rapidly flow ramps to its peak. A fast rise time minimises trigger delay but can cause an initial pressure overshoot; a slow rise time is gentler but increases work of breathing if too sluggish. [1]

Volume–time scalar in VC

The volume–time scalar rises LINEARLY during inspiration (constant flow → constant rate of volume delivery) to the preset Vt, then falls during expiration. Two bedside checks:

• Inspiratory volume = the preset Vt (guaranteed in VC — if the displayed delivered Vt is LESS than set, there is a LEAK: cuff leak, circuit disconnect, bronchopleural fistula, cracked humidifier).
• Expiratory volume should return to the zero baseline at end-expiration. If it does NOT return to zero → auto-PEEP (the trapped volume is "stored" above functional residual capacity). If expiratory volume is less than inspiratory volume → leak. [1]

[1]

Detailed Pressure Control (PC) scalar analysis

In PC the ventilator delivers a PRESET PRESSURE for a SET inspiratory time. Pressure is the independent variable (the ventilator controls it); flow and volume are dependent on the patient's mechanics. PC is preferred in ARDS (pressure-limited, safer) and in spontaneously breathing patients (variable flow better matches demand). [1]

Pressure–time scalar in PC

The hallmark of PC is a SQUARE pressure waveform: airway pressure rises rapidly to the preset target and is HELD CONSTANT throughout inspiration. This is the single most useful distinguishing feature — if the pressure is not constant (it sags or overshoots), there is a problem:

• Pressure overshoot at the start (a spike above the set pressure) → rise time too fast (pressure ramp set too aggressive) → reduce rise time. The overshoot is felt by the patient as discomfort and can cause barotrauma.
• Pressure sag during inspiration (the pressure drifts downward below target) → the patient is PULLING (high inspiratory demand) — the ventilator cannot sustain pressure against high patient flow demand → consider increasing the rise time or switching to a higher set pressure.
• Pressure NOT square (slow rise, never reaches plateau) → rise time too slow → increase rise time (faster pressure ramp). [1]

Because pressure is constant, PIP = Pplat = set pressure (there is no separate peak and plateau in PC — by design pressure is limited). This means you CANNOT separate resistance from compliance using the inspiratory hold in PC the way you can in VC. Instead, you assess resistance and compliance from the FLOW waveform. [1]

Flow–time scalar in PC — the diagnostic waveform in PC

In PC the inspiratory flow is DECELERATING: it starts HIGH (maximal gradient between set pressure and alveolar pressure at the start of inspiration) and falls EXPONENTIALLY as alveolar pressure rises toward the set pressure (the driving gradient narrows). The flow may reach zero before the end of the inspiratory time (no-flow plateau) or remain above zero throughout. [1]

The decay rate of the decelerating flow tells you about RESISTANCE and COMPLIANCE:

Assessing bronchodilator response from the flow–time scalar: in a COPD/asthma patient on PC, observe the expiratory flow. Before bronchodilator: the expiratory limb is CONCAVE (scooped) — flow falls rapidly then plateaus at a low level (expiratory obstruction). After nebulised salbutamol: if the expiratory flow IMPROVES (the concavity reduces, peak expiratory flow increases, flow returns toward baseline faster) → bronchodilator response confirmed objectively at the bedside. [1]

Volume–time scalar in PC

In PC the volume–time scalar rises CURVILINEARLY: fast initially (when flow is high), slowing as flow decelerates (most volume is delivered in the first half of inspiration). The total delivered Vt is the integral of flow over the inspiratory time. Key principle: Vt is NOT guaranteed in PC — it is the dependent variable:

• If compliance falls (ARDS worsening, oedema, atelectasis) → Vt falls (the lung cannot accept the same volume at the same pressure) → hypoventilation, rising PaCO2.
• If resistance rises (bronchospasm) → Vt falls (more pressure dissipated in resistance, less reaches alveoli) → hypoventilation.
• If the patient actively expires against inspiration (cycle asynchrony) → effective Vt falls. [1]

The "set the pressure, read the volume" principle: in PC you SET the pressure and READ the resulting Vt. If Vt is too low, you increase the set pressure (recheck that plateau stays <30) or increase inspiratory time. NEVER assume Vt is being delivered in PC — always confirm with the displayed Vt and capnography. [1]

[1]

P-V and F-V loops — the diagnostic loops

PRESSURE-VOLUME (P-V) LOOP:

• X-axis: pressure (airway). Y-axis: volume
• The loop is drawn CLOCKWISE (inspiration goes RIGHT, expiration goes LEFT)
• Slope = compliance (ΔV/ΔP — steeper slope = more compliant lung). In ARDS, the slope is FLAT (stiff lung)
• Lower inflection point (LIP): the pressure at which collapsed alveoli start to recruit (sudden increase in slope). SETTING PEEP ABOVE the LIP keeps alveoli open. Controversial — not always visible on dynamic loops (best on static/slow inflation)
• Upper inflection point (UIP): the pressure at which the lung is fully recruited and further pressure causes overdistension (flattening of slope). Vt/pressure should NOT exceed the UIP (overdistension → VILI). Amato 2015: driving pressure (Vt/compliance) = the distance between PEEP and end-inspiratory pressure on the P-V loop — the strongest predictor of survival in ARDS
• Hysteresis: the inspiratory limb is DIFFERENT from the expiratory limb (inspiratory curve is to the RIGHT of expiratory curve — the area between them = energy dissipated in tissue resistance + surfactant). Increased hysteresis = increased tissue resistance [1]

FLOW-VOLUME (F-V) LOOP:

• X-axis: volume. Y-axis: flow
• Inspiration is ABOVE the baseline (positive flow). Expiration is BELOW (negative flow)
• Auto-PEEP detection: if the expiratory flow does NOT return to the ZERO FLOW LINE before the next inspiration starts → gas is TRAPPED → auto-PEEP. The amount of trapped volume = the area between the expiratory flow curve and the zero line at end-expiration
• Obstruction: expiratory limb is CONCAVE (scooped) — flow falls rapidly initially then plateaus at a low level → expiratory obstruction (COPD, asthma) → gas trapping
• Leak: if the expiratory volume (area under expiratory flow) is LESS than inspiratory volume → LEAK (cuff leak, bronchopleural fistula, circuit disconnect) [1]

Detailed P-V loop interpretation — compliance, recruitment, overdistension

The pressure-volume (P-V) loop plots airway pressure (x-axis) against lung volume (y-axis). It is the most information-dense single graphic in mechanical ventilation — from one loop you can read compliance (slope), recruitment opportunity (lower inflection point), overdistension (upper inflection point), and energy dissipation (hysteresis). In CICM/FFICM exams you will be shown a P-V loop and asked to interpret it. [1]

The four features to extract from every P-V loop

[1]

How to perform a P-V curve (low-flow inflation / super-syringe method)

Dynamic P-V loops displayed by the ventilator in real time are useful but are affected by resistive pressure (they include the flow×resistance component). To get a TRUE static compliance curve (the gold standard for identifying inflection points), perform a LOW-FLOW INFLATION (quasi-static) P-V curve: [1]

[1]

Calculating compliance from the P-V loop

Static compliance (Cstat) = Vt / (Pplat – PEEP). Measured during an inspiratory hold (no flow → no resistive component). Normal 50–100 mL/cmH2O. This is the slope of the line connecting PEEP-volume to Pplat-volume on the P-V loop. [1]

Dynamic compliance (Cdyn) = Vt / (PIP – PEEP). Measured during dynamic flow (includes resistive component). Always LESS than static compliance in the presence of resistance. [1]

The ratio Cdyn/Cstat reflects resistance: if Cdyn ≪ Cstat → high resistance (the resistive pressure dominates). If Cdyn ≈ Cstat → low resistance. This is a quick screen for resistance vs compliance problems without an inspiratory hold. [1]

Driving pressure (ΔP) = Pplat – PEEP = Vt / Cstat. This is the elastic pressure applied to deliver the tidal volume. Amato 2015 (NEJM): ΔP is the STRONGEST ventilatory predictor of survival in ARDS — target ΔP <15 cmH2O. On the P-V loop, ΔP is the WIDTH of the loop along the pressure axis between PEEP and end-inspiration.[4]

What "beaking" means and why it matters

Beaking = flattening of the inspiratory limb at high pressure (the upper inflection point reached). At the beak, additional pressure produces almost NO additional volume — the lung is fully recruited and further pressure only OVERSTRETCHES the open alveoli → volutrauma/barotrauma → VILI. If you see beaking:

• The tidal volume is too large for the baby lung (reduce Vt).
• PEEP may be too high (the lung is already over-recruited at end-expiration — reduce PEEP and recheck).
• The plateau pressure is almost certainly >30 cmH2O (overdistension threshold). [1]

Hysteresis — the forgotten feature

The inspiratory and expiratory limbs do NOT overlap — the inspiratory limb lies to the right (at any given volume, the inspiratory pressure is higher than the expiratory pressure). The AREA between the limbs = HYSTERESIS = energy dissipated per breath (tissue viscoelastic resistance + surfactant action + recruitment/derecruitment cycling). Increased hysteresis is seen in ARDS (stiff, heterogeneous lung with ongoing recruitment-derecruitment). A loop with little hysteresis and a normal slope = healthy lung. [1]

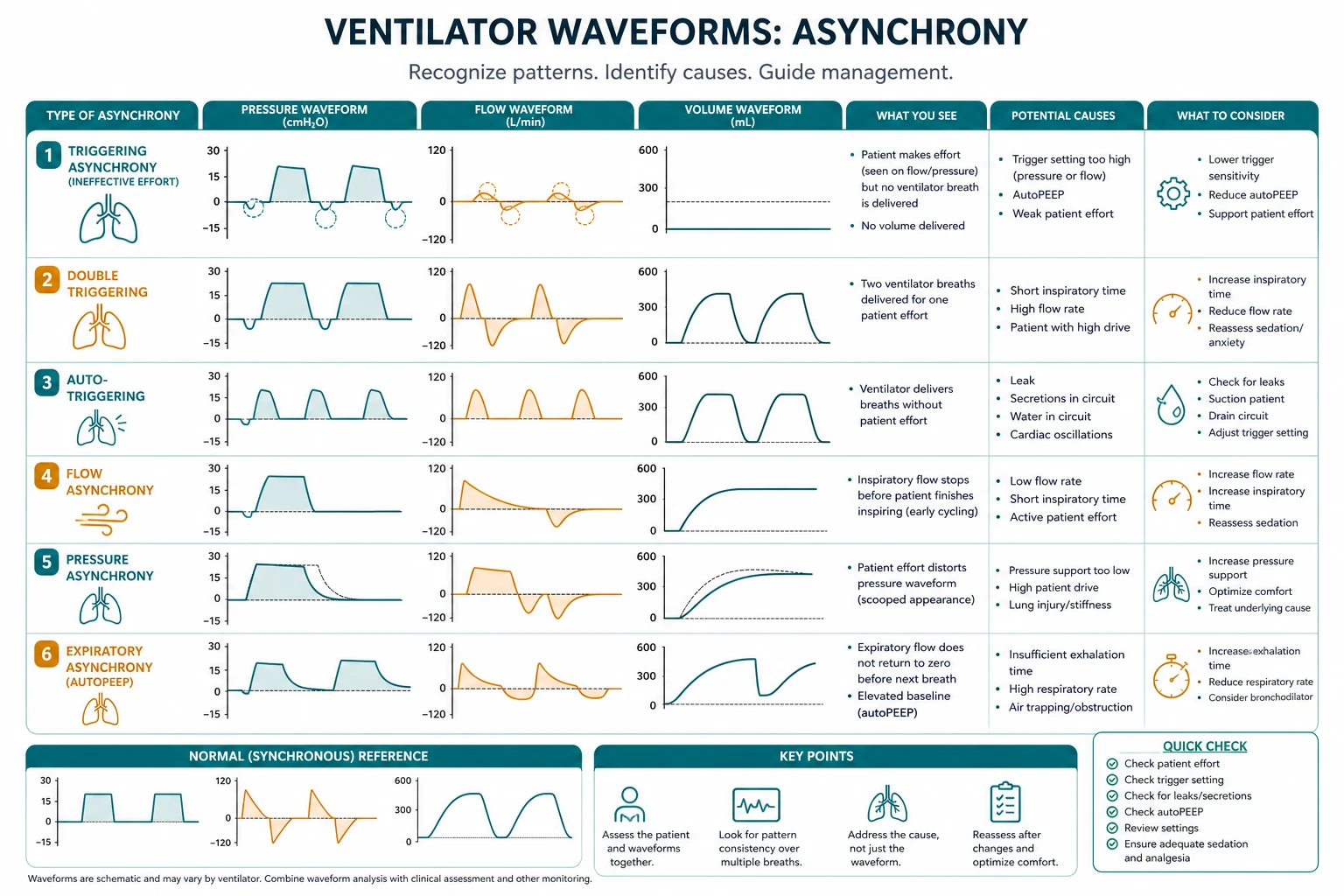

Patient-ventilator asynchrony — the 4 types

[1]

Asynchrony quantification — measuring the burden at the bedside

Asynchrony is common (up to 25% of ICU patients have significant asynchrony) and is associated with prolonged ventilation, delayed weaning, discomfort, and worse outcomes. The key exam concept is that asynchrony can be QUANTIFIED from a short waveform recording — it is not just "eyeballed". [1]

The asynchrony index (AI)

The asynchrony Index (AI) = (number of asynchrony events / total number of breaths [triggered + machine]) × 100, expressed as a percentage. It is calculated over a representative recording (typically 5–30 minutes of waveform data, or via dedicated monitoring software). [1]

Severe asynchrony is defined as AI >10% — this threshold (from the Thille 2006 and de Wit 2009 studies) identifies patients in whom asynchrony is clinically meaningful and associated with prolonged mechanical ventilation and worse outcomes.[3]

The major asynchrony subtypes and how to count each

[1]

The effective triggering rate

A useful single metric: the effective triggering rate = number of breaths successfully triggered by the patient per minute. Compare the SET (backup) respiratory rate to the TOTAL rate: if the total rate barely exceeds the set rate, the patient is doing little work (or is oversedated); if there are many ineffective efforts BETWEEN triggered breaths, the patient is working hard but failing to trigger (high ineffective trigger rate). A high ineffective trigger rate in a COPD patient usually points to auto-PEEP — the patient must first overcome intrinsic PEEP before generating the trigger flow/pressure. [1]

Clinical implications of severe asynchrony (AI >10%)

• Prolonged mechanical ventilation and delayed weaning (the patient-ventilator mismatch prevents successful liberation).
• Increased work of breathing and discomfort.
• Higher risk of VAP (prolonged intubation).
• Worse outcomes: observational data link high AI to increased ICU mortality.
• Action: if AI >10%, systematically address each modifiable cause — trigger sensitivity, auto-PEEP (the commonest reversible cause of ineffective triggering in COPD), flow/demand matching (switch VC → PS for better demand matching), and cycling criteria.

Pressure Support (PS) and CPAP waveform analysis

Pressure Support (PS) and CPAP are the spontaneous breathing modes — the patient drives every breath and the ventilator ASSISTS. These are the weaning modes, and their waveforms are distinctive because they reflect patient-ventilator INTERACTION rather than ventilator control. [1]

Pressure Support (PS) waveform — the four phases

In PS the patient TRIGGERS every breath, the ventilator delivers a SET PRESSURE (above PEEP), flow is decelerating (variable, matches patient demand), and the breath CYCLES to expiration when inspiratory flow falls to a SET percentage of peak flow. Four phases are analysable on the waveform: [1]

[1]

Trigger delay

Trigger delay = the time between the onset of the patient's neural inspiration (detectable as the start of the pressure/flow deflection) and the ventilator's response (pressure begins to rise). Prolonged trigger delay (>200 ms) increases the patient's work of breathing and is felt as dyspnoea. Causes:

• Trigger too insensitive (high threshold) → make more sensitive (flow trigger 1–2 L/min).
• Auto-PEEP (the patient must first decompress intrinsic PEEP before generating trigger flow) → the commonest cause in COPD → reduce auto-PEEP (lower RR, shorten I time, treat bronchospasm).
• Rise time too slow → the pressure ramps up too gradually → adjust rise time. [1]

Pressure ramp (rise time)

The rise time (or pressure ramp / pressurisation rate) controls how quickly airway pressure rises from PEEP to the set PS target at the start of inspiration.

• Rise time too fast → a pressure overshoot (spike above set PS at the start of inspiration) → patient discomfort, sometimes triggering premature cycling. Reduce the rise time (slower ramp).
• Rise time too slow → pressure fails to reach the PS target before flow has already begun to fall → the patient perceives inadequate support and works harder → increase rise time (faster ramp). A concave initial pressure upstroke (never reaching the target) signals a slow rise time or a leak. [1]

Cycling criteria (flow-based cycle-off)

In PS the breath cycles to expiration when inspiratory flow falls to a SET percentage of peak inspiratory flow (the cycle-off %, typically 25%, adjustable 5–80%). This is the LEVER for cycle asynchrony in PS:

• Premature cycling (cycle-off % too high, e.g., 50%) → the breath cycles before the patient's neural inspiration ends → the patient continues to inhale against a closed inspiratory valve → triggers a second breath → double triggering. Fix: DECREASE the cycle-off % (e.g., from 50% to 25%) to lengthen inspiration.
• Delayed cycling (cycle-off % too low, e.g., 5%) → the ventilator keeps insufflating after the patient has started to exhale → the patient actively expires against inspiratory flow → pressure spike at end-inspiration. Fix: INCREASE the cycle-off % (e.g., from 5% to 25%) to shorten inspiration. Delayed cycling is common in obstructive disease (long time constants) — the flow falls slowly and never reaches a low cycle-off threshold promptly.
• Leak and cycling: a circuit leak prevents inspiratory flow from falling to the cycle-off threshold → the breath never cycles → prolonged inspiration → pressure support effectively becomes pressure control. Modern ventilators use time-based backup cycling to terminate PS in the presence of a large leak. [1]

CPAP waveform — spontaneous breathing on PEEP

In CPAP the ventilator provides a CONTINUOUS POSITIVE AIRWAY PRESSURE with the patient doing ALL the work (no pressure support above PEEP). The waveform shows the patient's spontaneous breathing against a constant baseline pressure:

• Pressure–time: a flat baseline at the set CPAP (e.g., 5–10 cmH2O). Each spontaneous breath appears as a small downward deflection (the patient's inspiratory effort briefly drops airway pressure) followed by a return to baseline. The depth of the deflection reflects the patient's work of breathing — large deflections = high WOB, may indicate fatigue (consider adding PS).
• Flow–time: spontaneous biphasic flow — inspiratory flow above baseline, expiratory flow below, with a sinusoidal-ish pattern at the patient's own rate and depth. Normal spontaneous breaths have a smooth, rounded inspiratory flow curve (NOT square) decelerating to zero, then a passive decelerating expiratory limb.
• Volume–time: rises and falls with each spontaneous breath at variable Vt (the patient determines the size of each breath). [1]

What normal spontaneous breaths look like on CPAP: a regular rate (10–20/min in adults), smooth rounded inspiratory flow peaks of consistent amplitude, full expiration to baseline (no auto-PEEP), and small pressure deflections (minimal WOB). Irregular rate, large pressure deflections, or failure of expiratory flow to return to baseline = abnormal — assess for fatigue, obstruction, or asynchrony. [1]

[1]

Clinical pearls

Red flags

Prognosis

[1]

Key trials and evidence

[1] [1] [1]

Additional red flags

Common exam scenarios — applying waveform analysis

Scenario A: Rising peak pressure in a ventilated patient

You are called: "The ventilator is alarming — high pressure." Approach with the PIP-Pplat-PEEP method. Do an inspiratory hold. If PIP is high but Pplat is normal (wide gradient) → RESISTANCE (suction, bronchodilate, check the tube is not kinked/bitten, check for circuit obstruction). If both PIP and Pplat are high → COMPLIANCE (examine for pneumothorax — asymmetric chest, tracheal deviation, hypotension; check for main-stem intubation; consider derecruitment/atelectasis; reduce Vt if overdistended). The waveform tells you WHICH problem before you order the chest X-ray.[3]

Scenario B: COPD patient cannot be weaned — high PaCO2, tachypnoeic

Look at the flow–time scalar and F-V loop. If expiratory flow does NOT return to baseline before the next inspiration → AUTO-PEEP (the commonest weaning failure mechanism in COPD). Confirm with an expiratory hold (total PEEP − set PEEP = auto-PEEP). The auto-PEEP also causes INEFFECTIVE TRIGGERING — the patient must decompress intrinsic PEEP before generating trigger flow, so many efforts are wasted (visible as downward pressure deflections without a delivered breath). Fix: reduce RR, shorten inspiratory time (lengthen expiratory time, I:E 1:3 to 1:4), treat bronchospasm, consider a larger ETT or extubation to NIV.[3]

Scenario C: Double triggering in ARDS on VC

The patient is still inhaling when the ventilator cycles → triggers a second breath → effectively double the Vt → risk of VILI and a high apparent RR. The patient wants more flow than the fixed VC flow provides. Fix: increase the inspiratory flow rate, increase inspiratory time, or switch to PC/PS where flow is variable and matches demand. Double triggering is the commonest asynchrony and, if >10% of breaths, warrants intervention.[3]

Scenario D: Titrating PEEP in ARDS using the P-V loop

Goal: maximise recruitable lung without overdistending. After a recruitment manoeuvre, perform a DECREMENTAL PEEP trial — step PEEP down from high to low and find the PEEP giving the BEST compliance (lowest driving pressure, ΔP). Set PEEP 2 cmH2O above that best-compliance point. Confirm no beaking on the P-V loop (UIP not exceeded, Pplat <30) and ΔP <15. This is more practical and better validated than chasing inflection points.[4]

[1]

High-yield summary for exams

[1]

Written practice
